SECTION I.  ADMINISTRATIVE DATA

Sustainment         This lesson is the first in a series that comprises the sustainment training course for
Training                the Bradley Fighting Vehicle - Operation Desert Storm (BFV-ODS). The lessons that
Course                  complete the course, in recommended order, are:

·  Stowage Improvements
·  Driver’s Vision Enhancer (DVE)
·  Bradley Eye-safe Laser Range Finder (BELRF)
·  Battlefield Combat Identification System (BCIS)
·  Missile Countermeasure Device (MCD)
·  Vehicular Intercommunications System (VIS)
·  Precision Lightweight Global Positioning System (GPS) Receiver (PLGR)
·  Digital Compass System (DCS)

Instructional         The recommended hours to teach this lesson are:
Hours

Type Instruction	Hours/Method
Conference	0.5/C
PE	0.0/
Test	0.0/
Test Review	0.0/
Total Hours	0.5/

Prerequisite          None.
Lessons

Clearance and      This is an unclassified lesson.
Access

References

Number	Title	Date	Para No	Additional Information
TM 9-2350-284-10-1-1	Fighting Vehicle, Infantry, Operation Desert Storm M2A2 ODS and Fighting Vehicle, Cavalry, Operation Desert Storm M3A2 ODS, Hull	May 96		None
TM 9-2350-284-10-2-1	Fighting Vehicle, Infantry, Operation Desert Storm M2A2 ODS and Fighting Vehicle, Cavalry, Operation Desert Storm M3A2 ODS, Turret	May 96		None
None	1-29th Infantry Regiment ODS BFV Instructor Evaluation Guide	Mar 96		None
None	1-29th Infantry Regiment ODS BFV Student Evaluation Guide	Jun 96		None

Student Study       None.
Assignments

Instructor              This lesson requires one principal and one assistant instructor per 25 students.
Requirements

Additional              None.
Support
Personnel

Equipment             This lesson requires the following equipment:
Required

·  Overhead projector with spare bulb.
·  Projector screen.
·  Video cassette player with television.
·  Pointer.
·  Extension cord.
·  Name and classroom lectern boards.
·  Visitor’s folder.

Materials
Required

Instructor Materials	Student Materials
1. Lesson instructor guide. 2. Viewgraphs (6). 3. Videotape.	1. Lesson student guide. 2. Writing materials (notebook and pencil or pen).

Classroom,            This lesson requires a classroom able to accommodate 25 students, 1 instructor,
Training Area,       1 video cassette player with television, 1 overhead projector, and 1 screen.
and Range
Requirements

Ammunition            None.
Requirements

Instructional           The instructor prepares to present this lesson by studying this instructor’s guide
Guidance                 and the reference materials.

Safety                      None.
Requirements

Risk                         Low.
Assessment
Level

Environmental         None.
Considerations

Proponent
Lesson Plan
Approval

Name	Rank	Position	Date
Robert J. Fulcher, Jr.	COL	Commander, 29th Infantry Regiment

SECTION II.  INTRODUCTION

Motivation           Use the following points to motivate the students:

·  The Bradley was a major participant in Operation Desert Storm in the Persian Gulf.
·  Following Operation Desert Storm, the Army identifed deficiencies and improvements needed by the
   Bradley by asking the soldiers who had fought the vehicle.
·  The Army acted on the recommendations it received, and the result is the Bradley ODS. The Bradley
   ODS is an interim vehicle to get the needed improvements into the field quickly. The ODS
   improvements will be included in the Bradley A3 that will begin fielding about the year 2000.

Terminal               The terminal learning objective for this lesson is:
Learning
Objective

Action	Identify ODS improvements,
Condition	given the materials presented in this lesson,
Standard	and successfuly complete the check-on-learning.

Instructional         SHOW VGT Intro-1, Introduction.
Lead-in

GOOD MORNING. I AM _______________________________________.
I WILL BE YOUR PRINCIPAL INSTRUCTOR FOR THE NEXT 30 MINUTES. THIS INTRODUCTION BEGINS YOUR COURSE OF INSTRUCTION ON THE BRADLEY FIGHTING VEHICLE -OPERATION DESERT STORM (BFV-ODS). THE ARMY IDENTIFIED DEFICIENCIES AND IMPROVEMENTS NEEDED BY THE BRADLEY BY INTERVIEWING THE SOLDIERS WHO HAD FOUGHT THE BRADLEY IN THE PERSIAN GULF. THE ODS-VERSION BRADLEY IS THE RESULT OF THAT PROCESS. IT IS AN INTERIM VEHICLE BETWEEN THE A2 AND THE A3 BRADLEYS TO GET THE ODS IMPROVEMENTS INTO THE HANDS OF THE TROOPS AS QUICKLY AS POSSIBLE. THE A3, BEING DEVELOPED AT THE SAME TIME, WILL INCORPORATE THE ODS IMPROVEMENTS.

REMOVE VGT Intro-1.

VGT Intro-1

BFV-ODS             SHOW VGT Intro-2, BFV-ODS Improvements - Introduction.
Improvements

THE BFV-ODS IMPROVEMENTS CONSIST OF SIX MAJOR ITEMS. STARTING IN THE LOWER RIGHT-HAND CORNER AND MOVING CLOCKWISE, THESE ARE THE DRIVER’S VISION ENHANCER (DVE), DIGITAL COMPASS SYSTEM (DCS), MISSILE COUNTERMEASURE DEVICE (MCD), BRADLEY EYE-SAFE LASER RANGE FINDER (BELRF), BATTLEFIELD COMBAT IDENTIFICATION SYSTEM (BCIS), AND STOWAGE IMPROVEMENTS. NOT SHOWN ON THIS VGT IS THE VEHICULAR INTERCOMMUNICATIONS SYSTEM (VIS). THE VIS IS NOT AN ODS IMPROVEEMENT, BUT IT IS BEING INTRODUCED TO THE BRADLEY WITH THE ODS VERSION OF THE VEHICLE.

·  THE DVE GIVES THE BRADLEY DRIVER THE ABILITY TO MANEUVER HIS
   VEHICLE IN CONDITIONS OF REDUCED VISIBILITY.
·  THE DCS, WITH THE GLOBAL POSITIONING SYSTEM (GPS), GIVES THE BRADLEY
   CREW THE KNOWLEDGE OF WHERE IT IS, WHERE IT IS GOING, THE
   DIRECTION TO STEER, AND WHEN IT ARRIVES AT THE DESIRED POINT.
·  THE MCD PROTECTS THE BRADLEY AGAINST MOST ANTITANK GUIDED
   MISSILES.
·  THE BELRF TELLS THE BRADLEY GUNNER AND COMMANDER THE RANGE TO
   A TARGET. IT ALSO USES INFORMATION FROM THE DCS TO GIVE THE 8-DIGIT
   COORDINATES OF THE TARGET.
·  THE BCIS GIVES THE BRADLEY THE CAPABILITY TO IDENTIFY FRIENDS AND TO
   BE IDENTIFIED AS A FRIEND BY OTHER BCIS-EQUIPPED VEHICLES. IT WILL
   ALSO INFORM THE BRADLEY WHEN A FRIEND IS IN THE VICINITY OF A
   TARGET.
·  STOWAGE IMPROVEMENTS INCLUDE A LARGE NUMBER OF MODIFICATIONS
   TO STOWAGE CONFIGURATIONS AND IMPROVEMENTS TO MODIFY OR ADD
   TO THE BRADLEY INTERNAL DESIGN. THESE WILL BE IDENTIFIED LATER.
·  VIS IS NOT SHOWN ON THE VGT, AND IT IS NOT AN ODS IMPROVEMENT. IT IS
   NEW TO THE BRADLEY WITH THE ODS VERSION, HOWEVER. VIS PROVIDES
   THE BRADLEY CREW IMPROVED INTERNAL COMMUNICATIONS AND AN
   INTERFACE TO EXTERNAL COMMUNICATIONS. THE VIS WILL EVENTUALY BE
   INCLUDED IN ALL COMBAT VEHICLES.

REMOVE VGT Intro-2.

NOTE:  At this time, the instructor shows the BFV-ODS Introductory
             Videotape, if it is available.

VGT Intro-2

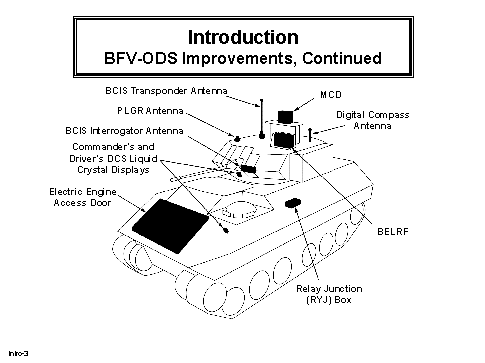

BFV-ODS             SHOW VGT Intro-3, Introduction - BFV-ODS Improvements, Continued.
Improvements,
Continued             THIS VGT SHOWS SOME OF THE ODS IMPROVEMENTS FROM A SLIGHTLY
                              DIFFERENT PERSPECTIVE.

NOTE THE:
·  MCD GIVES THE BRADLEY A TALLER SILHOUETTE..
·  LOCATION OF THE BELRF--IT IS INTEGRATED WITH THE INTEGRATED SIGHT
   UNIT.
·  RELAY JUNCTION, OR RYJ, BOX PROVIDES CIRUIT BREAKER PROTECTION FOR
   THE ODS IMPROVEMENTS. IT IS LOCATED INSIDE THE TURRET FLOOR.
·  ELECTRICALLY-OPERATED ENGINE ACCESS DOOR.
·  BCIS INTERROGATOR AND OMNI-DIRECTIONAL ANTENNAS.
·  COMMANDER’S AND DRIVER’S DIGITAL COMPASS DISPLAYS.
·  PLGR ANTENNA--PLGR IS ESSENTIAL TO OPERATION OF THE DCS.

REMOVE VGT Intro-3.

VGT Intro-3

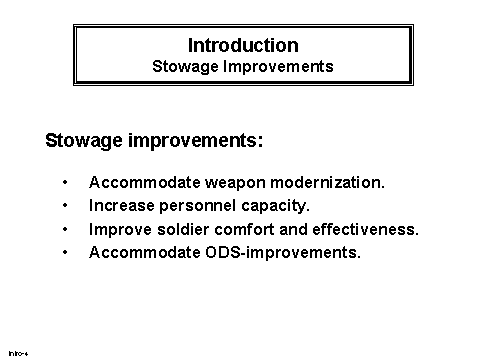

Stowage                SHOW VGT Intro-4, Introduction - Stowage Improvements.
Improvements

THE STOWAGE MODIFICATIONS GENERALLY FALL INTO ONE OF THE FOUR CATEGORIES SHOWN ON THIS VGT.
·  THE ARMY HAS REPLACED ITS DRAGONS AND LAWS WITH JAVELINS AND
   AT-4s. STOWAGE IN THE BRADLEY MUST ACCOMMODATE THIS CHANGE.
·  STOWAGE IMPROVEMENTS INCREASE PERSONNEL CAPACITY FOR THE
   INFANTRY FIGHTING VEHICLE.
·  SOME IMPROVEMENTS MAKE THE SOLDIER MORE COMFORTABLE AND
   MORE EFFECTIVE.
·  SOME CHANGES ARE NECESSARY TO ACCOMMODATE OTHER ODS
   IMPROVEMENTS.

REMOVE VGT Intro-4.

VGT Intro-4

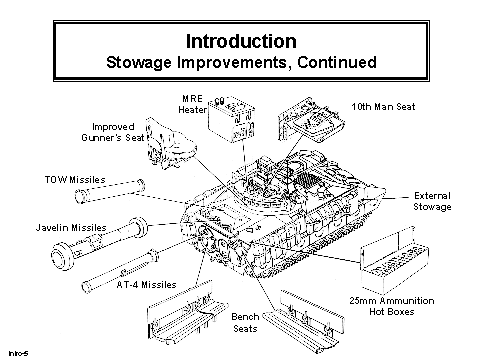

Stowage                SHOW VGT Intro-5, Stowage Improvements,Continued.
Improvements,
continued

THIS VGT SHOWS SEVERAL OF THE IMPROVEMENTS AND ADDITIONS THAT COLLECTIVELY COMPRISE "STOWAGE IMPROVEMENTS."

WE WILL DISCUSS EACH OF THESE IN THE STOWAGE COURSE MODULE.

REMOVE VGT Intro-5.

VGT Intro-5

SECTION IV.  SUMMARY

Review/                DURING THIS INTRODUCTION, YOU LEARNED THE COMPONENTS AND SYSTEMS
Summary of         THAT COMPRISE THE ODS IMPROVEMENTS. WE LOOKED AT THE MAJOR
Lesson                 SYSTEMS AND SAW WHERE SOME OF THE SYSTEM COMPONENTS ARE LOCATED
                             IN THE BRADLEY. AND WE LOOKED AT THE KINDS OF ITEMS THAT FALL UNDER
                             THE "STOWAGE IMPROVEMENT" UMBRELLA.

Check on             WHAT QUESTIONS DO YOU HAVE?
Learning

NOTE: Answer questions posed by the students before moving on.

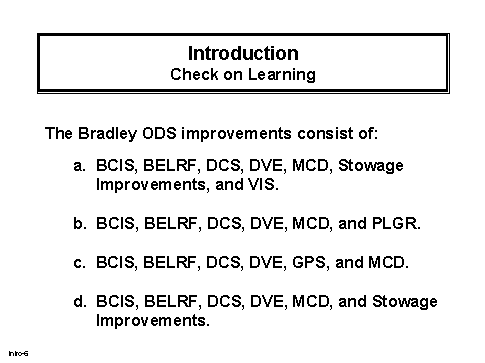

SHOW VGT Intro-6, Introduction - Check on Learning.

WHAT IMPROVEMENTS COMPRISE THE BASIC BRADLEY ODS IMPROVEMENTS?

VGT Intro-6

Check on             NOTE:  Allow the students a few minutes to offer their answers, then tell
Learning,                          the students the correct answer is "D."
continued

REMOVE VGT Intro-6.

THAT CONCLUDES THIS INTRODUCTION.

VGT Intro-6

SECTION V.  MASTER VIEWGRAPH LIST

Viewgraph List     The following table shows the viewgraphs used with this introduction:

Master Viewgraph List
Number	Title
Intro-1	BFV-ODS - Introduction
Intro-2	Introduction - BFV-ODS Improvements
Intro-3	Introduction - BFV-ODS Improvements, Continued
Intro-4	Introduction - Stowage Improvements
Intro-5	Introduction - Stowage Improvements, Continued
Intro-6	Introduction - Check on Learning
